Motorcycle Gear Indicator Display Ecu Plug - Honda Hornet CBR600 F F3 F4 F4i RR

Motorcycle Gear Indicator Display Ecu Plug - Honda Hornet CBR600 F F3 F4 F4i RR

£44.99 GBP
£0.00 GBP £44.99 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.



Motorcycle Gear Indicator Display Ecu Plug - Red

Feature:

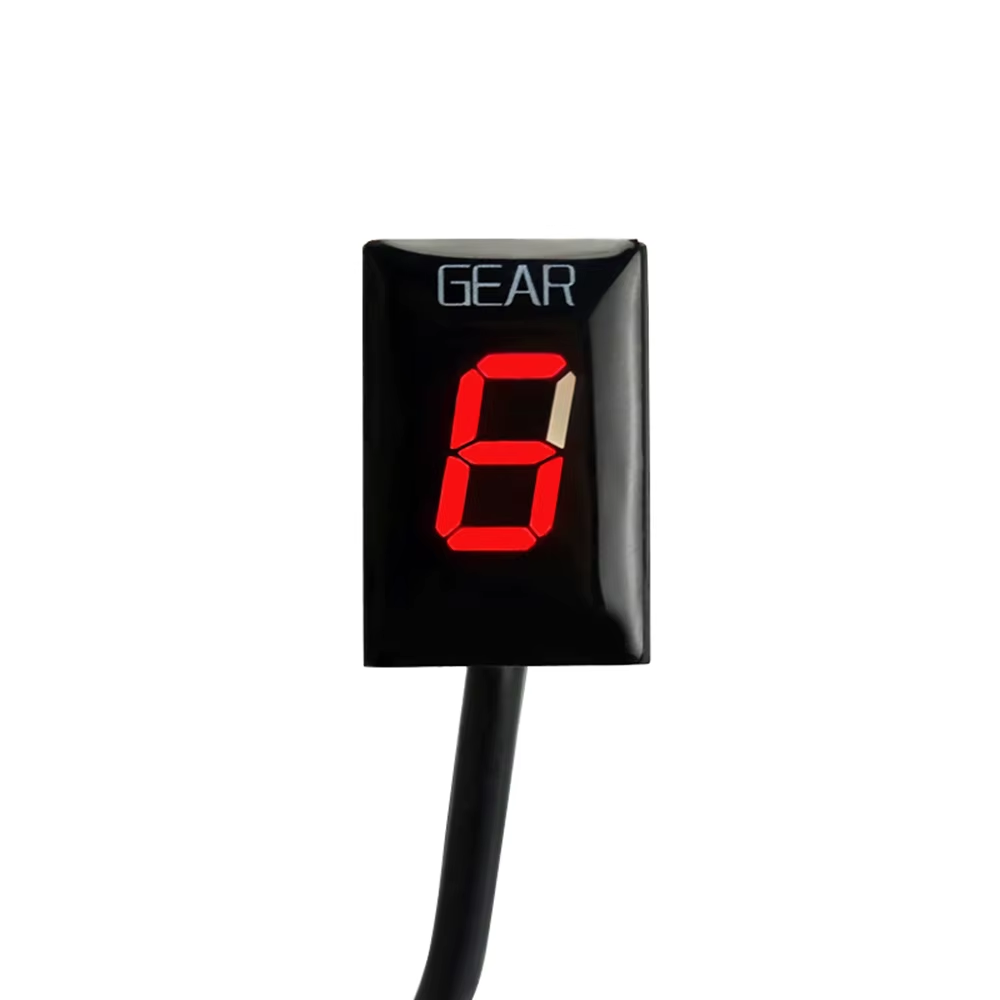

Shows current gear number
Indicates current gear from 1 to max of 6. as well as a neutral indicator.
Auto programming
Compatible with all motorbikes,four wheeler, bikes etc. will fit anything with a shift lever

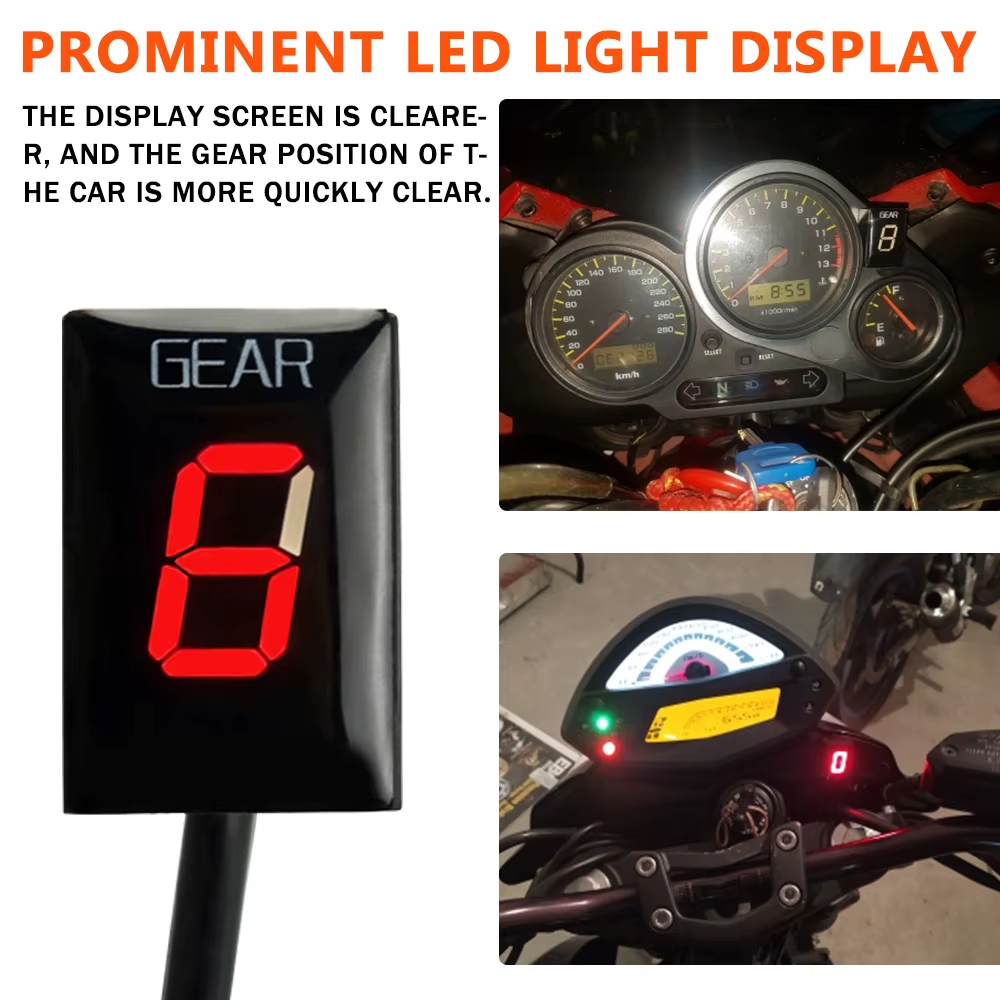

Red illuminated display will automatically dim at night.
Detects the current gear faster than other gear indicators that use speedometer/tachometer signal.
Display can be mounted anywhere

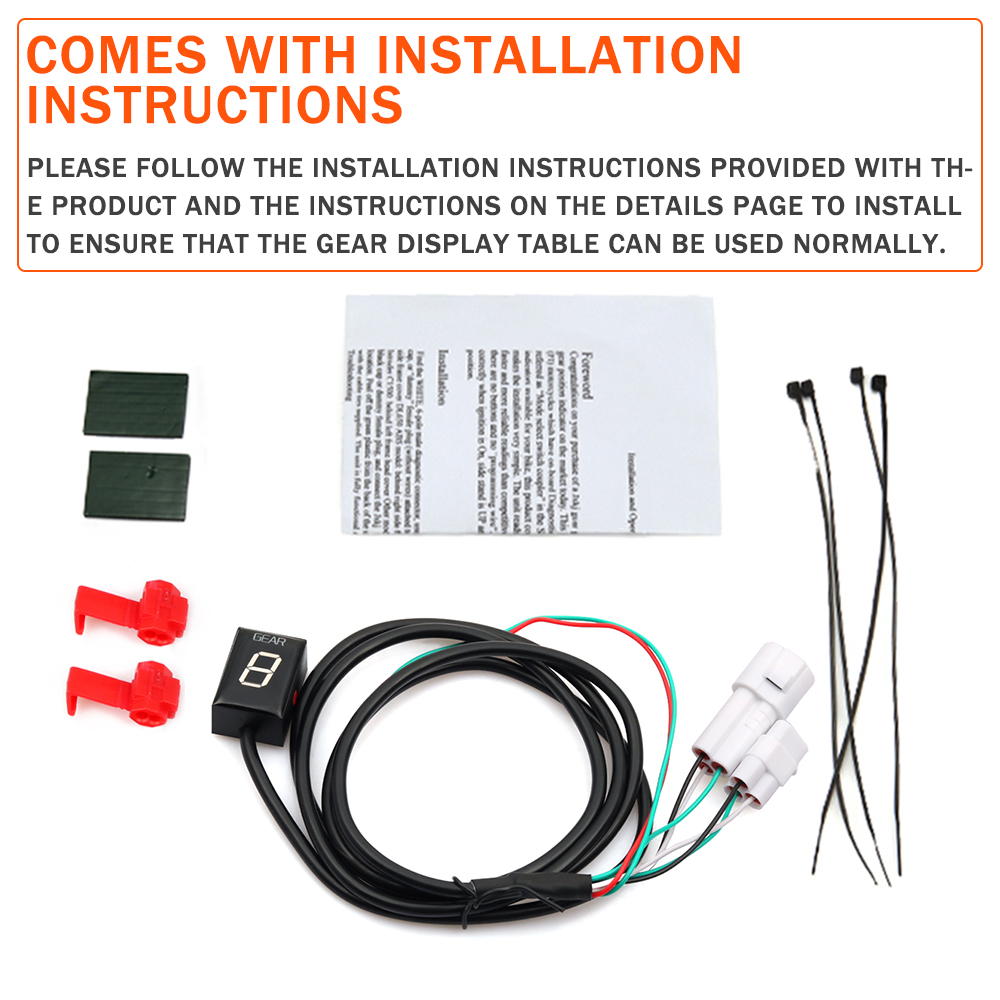

Installation:
Find the RED,4-pole male diagnostic connector(DLC), usually near the ECU box,It may have a removable cap and may be partially covered by black tape.

Steps:
-You need to setup the module after installation. When ignition is turned on, the display counts backwards (6 to 1) indicating that the memory is clear.

-Raise the rear wheel off the ground by using a stand, and start the engine in Neutral. (If you do not have a stand, you may setup the unit while riding. Find a long, straight road with light traffic.)

-The display will blink “1”.Select first gear, release the clutch, and keep the RPM above idle speed. The display is blinking faster while the unit is learning the gear.

-When the display shows “2”, select second gear.

Repeat this process until all gears are thought (5 or 6).

The unit is programmed and should indicate the gears correctly.

Now, when ignition is turned on, the display counts forward (1 to 6) indicating that it is fully functional.

Rest:
If some gears are not indicated correctly, please reset gear indicator.turn on the key switch of the switch lock. When the gear indicator shows 5.4.3, turn off the key switch of the switch lock immediately, and then turn on the key switch of the switch lock immediately. According to the above operation, turn on and turn off the key switch of the switch lock five times in a row to see if the reset is complete

Fitment:
For HONDA CB400 (2001 - 2005)

For HONDA CB400SF (1999 - 2005)

For HONDA CB600F (2003 - 2006)

For HONDA CB600S (2000 - 2002)

For HONDA CB900F Hornet (2002 - 2008)

For HONDA CB1100SF (1999 - 2004)

For HONDA CB1300SF (1998 - 2002)

For HONDA CBF600 (2004 - 2007)

For HONDA CbR150 (2015 Modify plug)

For HONDA CBR600F Hornet (1995 - 2010)

For HONDA CBR600F3 (1995 - 1998)

For HONDA CBR600F4 (1999 - 2000)

For HONDA CBR600F4i (2001 - 2006)

For HONDA CBR600FS (2001 - 2003)

For HONDA CBR900RR (1994 - 2003)

For HONDA CBR919RR (1996 - 1999)

For HONDA CBR929RR (2000 - 2001)

For HONDA CBR954RR (2002 - 2003)

For HONDA CBR1100XX (1996 - 2008)

For HONDA 599 Hornet (2003 - 2006)

For HONDA 919 Hornet (2002 - 2008)

For HONDA X 4 (1997 - 2003)

For HONDA X 11 (1999 - 2004)

For HONDA XL 1000V (1999 - 2002)

For HONDA XL125V Varadero (2001 - 2006)

For HONDA VRX 1800 (2002 - 2004)

For HONDA VFR 750 (1994 - 1997)

For HONDA VFR 800 (1998 - 2005)

For HONDA VT125C Shadow (1999 - 2009)

For HONDA VT 750S (2010 - 2014)

For HONDA VTR1000 SP1/SP2 (2000 - 2006)

For HONDA VTR1000F FireStorm/SuperHawk (1997 - 2005)

For HONDA RVT1000RR RC51 (2000 - 2006)

For HONDA ST 1300 Pan European (2002 - 2007)

For HONDA GL 1800 Gold Wing (2001 - 2004)
